FEATURES
5-Channel audio/video effects processor
96k Hz Sampling Frequency, 24-bit A/D and D/A converter, 32-bit DSP processor
3 RCA Optional /automatic Audio Signal Input, Provide three groups of five Mic Input.
Ability to connect with PC, and Ipad and Tablet with APP wifi contol the sound effect
10 preinstalled and customizable programs.
Settings can be locked using password.
Each output channel comes with independent 7-Bands EQ (5PEQ, Lo-Shelf, Hi-Shelf). A highpass filter and a low-pass filter. 3 kinds of different modes. Gain is adjustable from -30dB to +15dB .
Delay ,Phase Control and Mute setting are all available in each Input and Output channel. The output delay is up to 60ms.
Channel Effect, microphone volume, music volume and effect volume of each channel can be controlled .
Microphone comes with 4 levels of feedback functions. Both Microphone and Music Signals come with Noise gate.
Effects come with 3-Bands Parametric EQ and a pair of Hi/Lo -cut filter. The ratio between echo & reverb can be adjusted.
All channels can be controlled through connecting central console and the device by S terminal.

TECH SPECS
Input/output Channel & Socket
Source Input: AUX, VOD, BGM
Microphone Input: 5 (Front x 3, Rear x 2)
Video Inputs: 3 (RCA Jacks)
Video Outputs: 1 (RCA Jack)
Audio Inputs: 3 (RCA Jack x 2, Female XLR x 1)
Audio Outputs: 6 (Male XLR x 4)
Input Impedance: 20kΩ
Output Impedance: 100Ω
Pc Com Port: One USB Com Port on front panel
Remote Control: One S Terminal on rear panel
CMRR: >70dB (1KHz)
Input Range: ≤+25dBu
Frequency Response: 20Hz~20KHz (–0.5dB)
S/N R: >110dB
THD: <0.01% Output=0dBu / 1KHz
Crosstalk of Channels: >80dB (1KHz)

Functions of Input Channels
Input Mute: Each channel has Independent Mute Control
Input Delay: Each channel has Independent Delay Control Range: 0~30ms. stepover 0.1ms@<10ms; stepover 1ms@>10ms
Input Polarity: Same Phase + or reversed Phase -
Input EQ: Music and MIC are set with 9 Bands Parametric EQ. Central Frequency Point: 20Hz~20KHz, BandWidth: 0.01oct-3oct, stepover is 0.01oct. Default Frequency: EQ1 40Hz, EQ2 80Hz, EQ3 160Hz, EQ4 317Hz, EQ5 632Hz, EQ6 126Hz, EQ7 515Hz, EQ8 5018Hz, EQ9 10KHz. Also, high-cut and Low-cut filter is added.
Input Gain: Both Music and MIC have independent Gain Control from 0% to 100%
Limiter: Both Music and MIC have independent Limiter Control, -30dBu~+20dBu, stepover 0.1dBu
Feedback: MIC comes with 4 levels Feedback functions
Noise Gate: Open range: –10dBu to –119dBu stepover 1dBu

Functions of Output Channels
Output Mute: Each channel has Independent Mute Control
Output Polar: Same Phase + or reversed Phase -
Output EQ: Each Output Channel can be set up as 7Bands EQ. Central Frequency Point: 20Hz~20KHz, BandWidth: 0.01oct-3oct, stepover is 0.01oct. Default Frequency: EQ1 47Hz, EQ2 112Hz, EQ3 266Hz, EQ4 631Hz, EQ5 1495Hz, EQ6 3544Hz, EQ7 8399Hz.
Output Gain: Each Channel has independent Gain Control. Adjustable Range:0% to 100%, stepover 1%
Output Delay: Each channel has Independent Delay Control. Range: 0~60ms; stepover 0.1ms@<10ms; stepover 1ms@>10ms
Crossover: Each Channel can be set up LPF and HPF independently. Adjustable Parameters: Filter Types (Linkwitz-Riley/Besse/Butter-worth) Frequency Turning Point: 20Hz~20KHz, 239 Frequency Points Decay of Slope: 12dB/oct, 18dB/oct, 24dB/oct, 48dB/oct
Limiter: Each Channel can be set up limiter independently. Adjustable Parameters: Threshold Value: -20dBu~+20dBu
Stepover: 0.5dBu@starting time: 0.3ms~100ms Stepover<1ms@0.1ms, Stepover>1ms@1ms
Effector: 1M of Memory ,3-Bands Parametric EQ guarantees Real Effect Processor
Processor: 96KHz Sampling frequency, 32-bit Floating-Point DSP

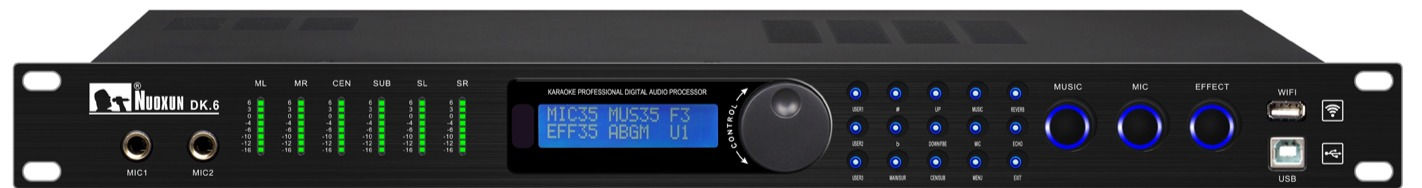

Display: With 144 x 32 LCD, 8-LED input/output level. Mute and Editing mode can be displayed.
Power Consumption: ≤25W
AC-Power: AC 110V/220V 50/60Hz

Physical Dimensions
Dimensions (WxHxD): 19×1.7×7.8 in / 48.3×4.4×19.7 cm
Packing Dimensions (WxHxD): 22.1×3.9×11.6 in / 56.2×9.8×29.4 cm
Net Weight: 7.8 Lbs / 3.5 Kg
Shipping Weight: 10.6 Lbs / 4.8 Kg
